T83
Chat Now

Share

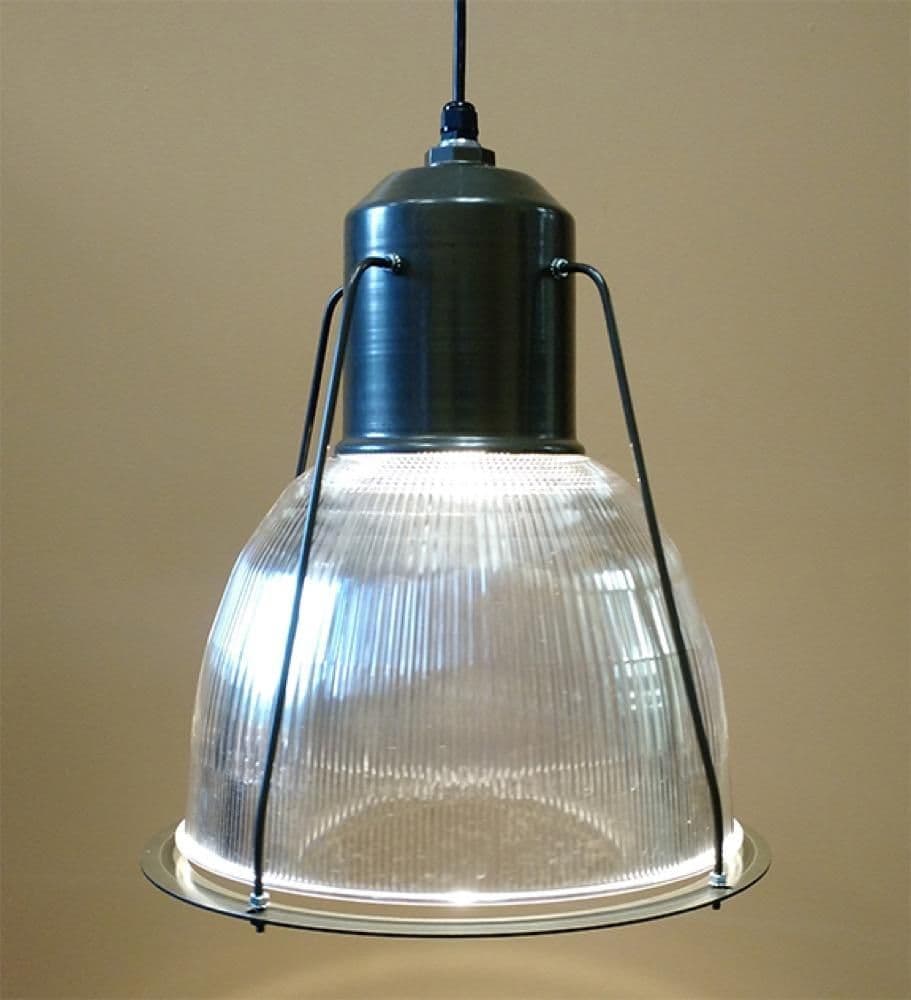

Features: Decorative Pendant fixture with 12” & 16” Reflexor® by LEXALITE® Refractor or Aluminum reflector with optional support rods and lower ring.

Lamp Source: Integral LED, CFL, Incandescent

LED: 1 or 2 LBA01 Modules. Each modules can do up to 3000lm each. Active cooling. 27/30/35/40K, Universal Voltage, 0-10V Dimming. 12” can do one module. 16” can do up to two modules.

CFL: 1, 2, 3, or 4 GX24Q-4 base 4-pin triple tube compact fluorescent lamps in either 26, 32, or 42 watts. Optional multiple switch leg option allows stepped dimming by separately controlling.

Incandescent: Medium base socket, 200W Max. *Contact factory for additional lamp types.

Mounting: 3/4”-NPT Hub, Thread. 96” Leads Standard. Cord & Stem optional.

Finish: Powder Coat

Label: cULus, Damp Location
